HighColor LED Display Screen Manufacturer: High Standard, True Color
Highcolor / Indoor precision displays

Fine Pitch
LED Display.

A seamless canvas. Detail that stays clear up close.

Build your indoor video wall around the way people see it. Compare P0.9375–P1.875 options, two cabinet formats and front service access for meeting rooms, control spaces and premium interiors.

Indoor video wall in a meeting room
Made for close viewingEvery detail, connected.
Service accessFront
P0.9375–P1.875Pixel pitch across S & K series
≥3,840 HzSpecified refresh rate
16:9 & 4:3Cabinet formats
Front servicePlan access from the room side

What is a fine pitch
LED display?

A fine pitch LED display is a direct-view LED video wall with closely spaced pixels for detailed images at short viewing distances. The term commonly refers to pitches around 2.5 mm and below, although definitions vary. A smaller pitch adds pixels to the same wall area; your final resolution also depends on the wall’s physical size.

01 / Find your format

Two cabinet formats.
One continuous image.

Start with the screen dimensions and content format. Then choose the pitch that meets your detail and budget requirements.

S Series

16:9 FORMAT

For video walls designed around Full HD and 4K content, with a compact 36 mm cabinet depth.

Cabinet size
600 × 337.5 mm
Cabinet weight
5.3 kg
Available pixel pitchesP0.9375 · P1.25 · P1.5625 · P1.875
View S Series specifications ↗

K Series

4:3 FORMAT

For indoor layouts built on a 640 × 480 mm cabinet grid. Match rows and columns to the available installation space.

Cabinet size
640 × 480 mm
Cabinet weight
6.5 kg
Available pixel pitchesP1.25 · P1.538 · P1.667 · P1.86
View K Series specifications ↗

Cabinet dimensions refer to width × height. Final model availability and the project configuration are confirmed with your quotation.

02 / Clarity with a purpose

Designed around what
your audience needs to see.

01 — DETAIL

More pixels.
Finer information.

Choose a smaller pitch for dense dashboards, presentation text and close viewing. Match source resolution to the actual pixel map.

02 — CONTINUITY

No LCD bezel
grid across content.

Modular LED cabinets create a continuous display surface. Accurate alignment and calibration are essential to a uniform result.

03 — MOTION

High refresh.
Considered for video.

A specified refresh rate of at least 3,840 Hz supports video playback. Camera-facing projects still need camera and processor testing.

04 — SERVICE

Access from
the front.

Front maintenance supports wall-mounted layouts. Confirm component access, tool clearance and the complete installed depth.

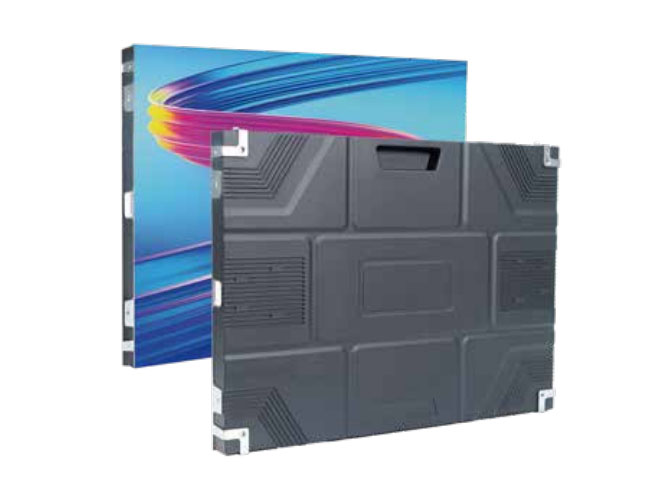

Highcolor fine pitch LED display product
Built into the room

Plan the installation.
Keep service accessible.

Cabinet depth is only part of the installation. Structure, cables, ventilation and service clearance all need space.

  • Choose a cabinet grid that fits the finished wall opening.
  • Reserve front access and confirm the removal path for service parts.
  • Coordinate structure, power distribution and signal routing before production.
03 / Size & resolution

Know what fits.
See what it resolves.

Plan a native 16:9 wall with the S Series. Adjust cabinet count and pixel pitch to compare the actual image resolution.

For viewing distance, start with the nearest viewer, content detail and smallest text. A pitch number alone does not guarantee a comfortable or pixel-free viewing experience.

4K planning example
P1.25 · 8 × 8 cabinets · 4.8 × 2.7 m
480 × 270 pixels per cabinet → 3,840 × 2,160 pixels.
4.80 × 2.70 mDisplay surface (W × H)
3,840 × 2,160Native pixel resolution
64 cabinetsCabinet quantity
12.96 m²Display surface area

Exact 4K UHD resolution. Dimensions exclude supporting structure and installation clearance.

Discuss This Layout

Enable JavaScript to recalculate. The example above remains available for reference.

04 / In the right setting

A clearer view of
the work that matters.

Define the application first. The display, processor and installation should answer the needs of the room together.

Meeting room display application

Meeting rooms

Presentations, video calls and detailed documents on one uninterrupted display surface.

Focus: text readability, content scaling and room lighting.
Control and monitoring room display application

Control & monitoring

Plan a continuous canvas for dashboards, maps and multiple information sources.

Focus: native pixel map, signal layout and operating schedule.
Corporate lobby display application

Lobbies & showrooms

Give brand films and product stories a large canvas that works at closer viewing distances.

Focus: nearest viewer, ambient light and wall integration.

For broadcast studios, evaluate scan behavior, camera shutter settings, moiré, color calibration and processor compatibility as a complete system.

05 / Technical details

Compare the numbers.
Choose with confidence.

Review each series separately. These are the published reference specifications; confirm the released datasheet for your order.

S Series fine pitch LED display specifications
ParameterP0.9375P1.25P1.5625P1.875
Pixel pitch (mm)0.93751.251.56251.875
Cabinet resolution (px)640 × 360480 × 270384 × 216320 × 180
Cabinet W × H × D (mm)600 × 337.5 × 36
Cabinet weight (kg)5.3
Brightness (cd/m²)≥600
Refresh rate (Hz)≥3,840
Viewing angle (H / V)160° / 160°160° / 160°150° / 130°150° / 130°
Contrast ratio≥5,000:1
Power, max / avg (W/m²)≤600 / 180
MaintenanceFront
Input voltageAC 100–240 V, 50/60 Hz

Average power varies with content, brightness and operating conditions. Cabinet depth excludes the mounting structure. Ask for exact LED packaging, driver IC, control system and destination-market documentation with your quote.

06 / A practical comparison

Fine pitch LED or an LCD video wall?

ConsiderationFine pitch LEDLCD video wall
Image continuityNo LCD panel bezel grid; cabinet alignment still matters.Panel bezels can interrupt continuous images.
Size & resolutionBuilt from cabinets; pixel pitch and wall size determine native resolution.Built from fixed-resolution LCD panels and their layout.
Close-range detailChoose pitch against viewing distance and text size.High pixel density can suit close viewing; assess bezel trade-offs.
Project budgetFiner pitch typically raises cost. Include processing, structure and spares.Compare total installed cost at the same size and content requirements.
Service planningFront service is available in these S & K configurations.Access depends on the panel and mounting system.

SMD

Packaged LEDs mounted on the circuit board. Compare the exact package, driver and calibration as part of the model specification.

COB & MIP

Different chip and packaging approaches. Evaluate surface protection, service method and visual performance on the exact product.

GOB protection

An added protective encapsulation approach. Ask whether it is available for the selected model and what protection has been tested.

Technology names describe different aspects of LED construction. They do not by themselves confirm the configuration or capabilities of a Highcolor S or K model.

Highcolor LED display assembly workshop
07 / Behind the display

From the project brief
to the production floor.

Highcolor manufactures LED display solutions in Shenzhen. Start with your room, content and installation requirements, then align the cabinet layout and component configuration before production.

12,000 m²Production area
Since 2013Established in Shenzhen

Review the installation behind the image.

Explore Highcolor’s project portfolio. For a comparable fine pitch installation, ask our team for the pixel pitch, wall dimensions, native resolution and service layout relevant to your brief.

Explore projects ↗
08 / Plan your investment

What affects the cost of
a fine pitch LED display?

Compare complete project scopes. A panel price per square meter does not describe the total installed system.

01. Pixel pitch

Smaller pitch increases pixel density. Start with the detail you need at the nearest viewing position.

02. Configuration

LED package, driver IC, power supplies, calibration and required operating performance.

03. System design

Cabinet quantity, receiving and sending hardware, processing, signal inputs and support structure.

04. Delivery & care

Packaging, freight, installation responsibilities, commissioning, spare parts and agreed support terms.

09 / Questions, answered

A few details
before you decide.

Need help comparing a specific layout or configuration?

Talk to our team ↗
Which pixel pitch should I choose?

Begin with the nearest viewing distance, screen dimensions, smallest text and target resolution. Compare candidate pitches using the same content at the intended distance. A finer pitch adds detail but can increase cost; it is not automatically the best choice for every room.

Can a fine pitch LED display achieve 4K?

Yes, when the cabinet layout provides 3,840 × 2,160 native pixels. For example, S Series P1.25 cabinets at 480 × 270 pixels produce exact 4K in an 8 × 8 layout measuring 4.8 × 2.7 m. A 4K input signal alone does not make a smaller native pixel map a 4K display.

What is the minimum viewing distance?

There is no single minimum that guarantees invisible pixels or readable text for every viewer. Pixel pitch, visual acuity, content and text size all affect the result. Provide your nearest viewing distance so the team can propose and demonstrate a suitable configuration.

Are these displays front serviceable?

The published S and K configurations specify front maintenance. Confirm which components can be removed from the front, the required tools and the clearance around the finished installation.

Are SMD, COB, MIP and GOB options available?

Availability must be confirmed for your exact pitch and cabinet. Request the LED package, protective treatment, service method and released model datasheet with the quotation rather than relying on a technology label.

Is 3,840 Hz enough for a broadcast studio?

Refresh rate is one part of camera performance. Test the complete display and processor with the intended frame rate, shutter angle, scan settings, camera distance and content. Moiré and scan artifacts cannot be ruled out from refresh rate alone.

What should I send to receive an accurate quote?

Send the application, screen width and height, nearest viewing distance, installation method, content resolution, destination and schedule. If a dimension is undecided, describe the available space. The quote should identify the model and the items included in the project scope.

What about warranty, lead time and spare parts?

Request the written terms for the specific configuration and destination. Confirm production timing, recommended spare parts, installation responsibilities and the support process before placing an order.
